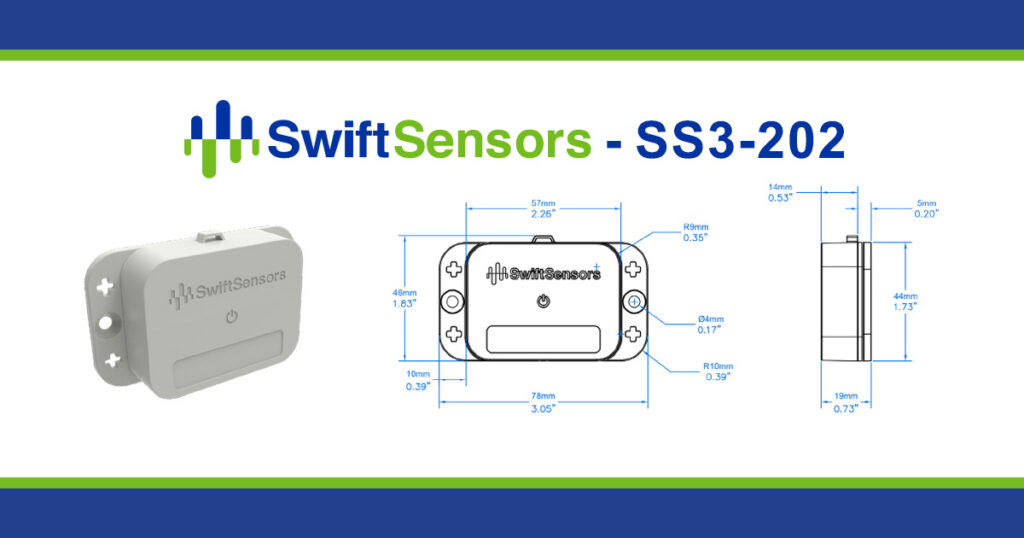

Wireless Vibration Amplitude Sensor
Swift Sensors Wireless Vibration Amplitude Sensor activates at a user-defined interval and measures g-force along X, Y and Z axes. This sensor samples continuously at 12.5Hz and returns the vector sum of the Peak value of the X, Y, and Z axes during each 1-minute interval. This sensor is ideal for detecting changes in activity, motion, or vibration on structures and equipment. The sensor enclosure is water-resistant and dustproof with a rating of IP66. The sensor returns a measurement once per minute. Users can set thresholds for notifications via SMS text, email, and phone call.
Simple, Plug-and-Play Deployment
Place the small battery-powered sensor in the location or on the equipment you need to monitor. The Swift Sensors Gateway instantly identifies the sensor and establishes secure communication. No wires to connect. No software to Install.
Sensors are powered with 2 AAA lithium polymer batteries with an average lifespan of 5 – 7 years. Sensors can be powered on or put into sleep mode by pressing the center of the sensor. A green LED in the sensor blinks when the sensor powers on, turns solid when transitioning to sleep mode, and will blink when the “Find my Sensor” command is sent from the Console. All sensors send encrypted data to the gateway.
Secure, Scalable, Cloud Architecture
The system is 100% cloud-managed. The gateway securely transmits sensor data to the Swift Sensors Cloud using 256-bit AES encryption. The system is scalable from a single sensor, one site application to multi-site enterprises with thousands of sensors.
Real-time Monitoring and Analytics with Actionable Data
Swift Sensors Console allows real-time asset monitoring and sophisticated analysis from anywhere – on a computer, tablet, or smartphone. Data analytics provide operational insights and deep visibility. SMS text, email, and phone call notifications can be set based on customizable threshold values and complex rules by individual sensors or sensor groups.
Swift Sensors Gateway
The Swift Sensors Gateway collects encrypted data from sensors located within the specified communication range (< 90m/300ft) and then transmits the sensor data to the Swift Sensors Cloud through either Ethernet, Wi-Fi, or cellular. The gateway auto-detects all sensors within range and will immediately establish secure communication without any user configuration or setup. Each gateway can support up to 150 Series 3 sensors.
Swift Sensors Console
All sensor data is logged and stored in the Swift Sensors Cloud. The Swift Sensors Console is configured to monitor and track all sensor data in the cloud. Multiple thresholds and alerts can be set separately for each sensor to supply notification via SMS text, email, or phone call. The console can be viewed in a web browser on a computer, tablet, or smartphone.
No programming is required to configure the console. An API to the Swift Sensors Platform allows
integration with other data sources and 3rd-party data analytics tools.
