Wireless Remote Temperature & Humidity Sensor with Probe (1m)

SS3-114

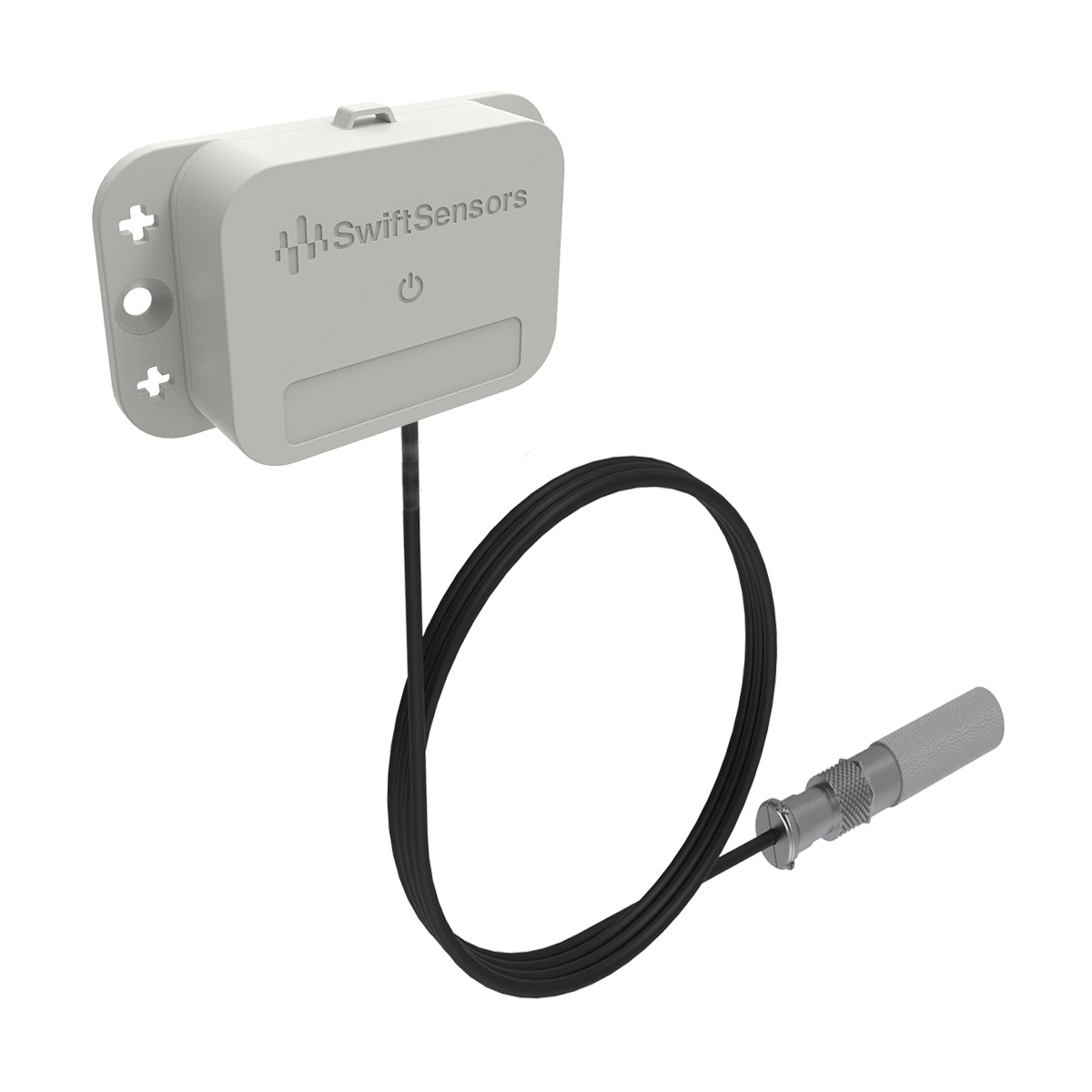

Swift Sensors Wireless Remote Temperature, Humidity, and Dew Point Sensor includes a 3” sealed probe affixed to the end of a 1m cable for making measurements in harsh environments or difficult-to-reach locations. The remote sensor measures temperatures between -40°F to +257°F (-40°C to +125°C) and Relative Humidity from 0-100%. The IP66-rated sensor enclosure is water-resistant and dust proof. View real-time analytics, download compliance reports, and receive instant mobile alerts on any device.

Swift Sensors offers NIST Calibration services through an independent ANAB ISO 17025: 2017 accredited laboratory. Swift Sensors manages all calibration logistics prior to initial sensor delivery and ensures seamless annual calibration renewal.

A Swift Sensors system requires the purchase of at least one gateway, at least one sensor, and a monitoring plan.  Learn more.

Specifications

Weight0.125 lbs
Dimensions3.05 × 1.73 × 0.73 in
Power1.8 – 3.6VDC, 0.045mW Average
Battery TypeAAA x2 Replaceable “L92” Lithium Polymer
Operating Voltage1.8VDC – 3.6VDC
Average Current Consumption22uA (Active), 500uA (Command ACK), <5uA(Sleep)
Operation Temperature-40°C to +60°C (-40°F to +140°F)
Battery Operating Temp-40°C to +60°C (-40°F to +140°F)
Battery Life (Average)5 – 7 Years
Communication ProtocolBLE/BT5 2.4Ghz
BLE ChipsetnRF52840
TX Strength0dBm to +8dBm
Range70m – 90m (250ft – 300ft) Line-of-Sight, 30m – 45m (100ft – 150ft) Non Line-of-Sight
Encryption128-Bit AES Encryption
Button PressClick to turn on. Press and Hold 2 sec to put in sleep mode
LEDGreen LED: 2 sec blinking when turning on. 2 sec solid when entering sleep mode
Find My SensorCommand from Console to blink sensor LED
Weight56g (2 oz)

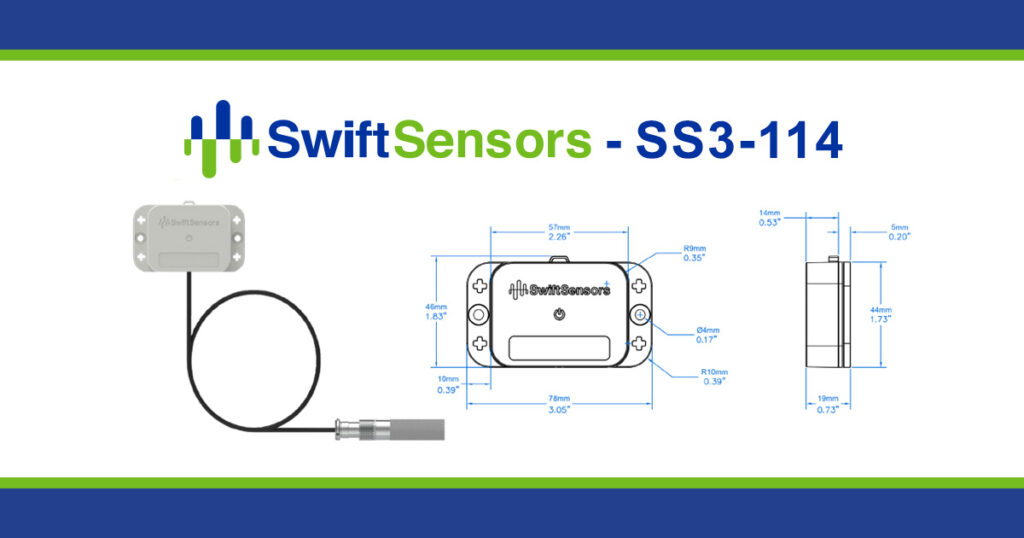

Dimensions57.5mm W X 44mm L X 18.57mm D (2.26in X 1.73in X 0.73in), 77.5mm(3.05in,Flanges)
Enclosure MaterialABS PA-765+
IP RatingCable/Probe Junction has IP68 Rating, IP66 – dust-proof and water-resistant to high-pressure jets/sprays
Probe Dimensions1m(1.25′) Probe Cable Length, 6mm (0.24″) cable Diameter, Probe Gland Dimensions: 14mm (0.56″) Diameter, 76mm (3″) Total Length
CertificationsCE : 2014/35/EU, 2014/53/EU, 2014/30/EU, FCC – X8WBT840F, IC – 4100A-BT840F
EMC ComplianceFCC Part 15 Class B
Flammability RatingUL94 V-0
Warranty2-year
Measurement RangeTemp: -40°C to +125°C (-40°F to +257°F)
Resolution0.01%RH, 0.01C, 14-Bit
Accuracy0.3°C
Precision0.01°C
Measurement Humidity0-100% RH, some condensation is tolerated
RH Accuracy+/- 2% (0-90% RH), +/- 3% (90-100%)
Inspection Rate1 – 30 Minutes (Default 5 Minutes)

Request Quote

Request a Quote

Features & Benefits

View real-time analytics, download compliance reports, and receive instant mobile alerts on any device.

System Components

A Swift Sensors system requires at least one gateway, at least one sensor, and a monitoring plan.

FAQ

A Swift Sensors system requires the purchase of at least one gateway, at least one sensor, and a monitoring plan.

  • We offer over 30 types of wireless sensors. Each sensor is smaller than a credit card and has battery life of 6-8 years. The sensor transmits data via Bluetooth 5 (BLE5) and connects to the gateway with a push of a button.
  • The gateway receives data from each sensor and then transmits the data to the cloud console via local ethernet, WiFi, or cellular network (optional module). Each gateway supports up to 150 sensors within a 500 foot radius.
  • The monitoring plan is very simple. The fee is based on the number of sensors you deploy. You can pay monthly, annually, or multi-year. There are no contracts required. View real-time analytics, download compliance reports, and receive instant mobile alerts on any device.

The sensor range is generally 500 ft (150 m) depending on the facility infrastructure and equipment located between the sensor and the gateway. The sensors use the BLE5 wireless communication protocol which allows signal transmission through doors and walls constructed of standard building materials.

Each sensor uses two AAA lithium polymer batteries with an average lifespan of 6-8 years.  Replacement batteries are readily available at hardware stores and various retail locations.

The monitoring plan is very simple. The fee is based on the number of sensors you deploy. You can pay monthly, annually, or multi-year. There are no contracts required.

The Swift Sensors Console is a robust cloud-based monitoring, alerts, and reporting platform viewable remotely on any device. The Console is used for hardware setup and system configuration. The Console presents analytics that provide trend analysis, historical documentation, compliance reporting, and deep insights into equipment performance, facility operations, and environmental conditions. The platform is customizable and adaptable to any industry with unparalleled ability to search, filter, sort and view critical measurement and performance data. Configurable instant alerts enable immediate corrective actions when significant events occur. Alerts can be sent to individuals or groups via SMS text, email, or voice.

The Swift Sensors monitoring, alerts, and reporting platform was developed and is maintained by industry experts with extensive experience in network security. Sensor to gateway communication utilizes BLE5 and 128-bit AES encryption. Gateway to cloud Console communication utilizes ethernet, WiFi, or cellular (optional module) and 256-bit AES encryption. Data is securely transmitted over Secure Sockets Layer (SSL) on port 443. The Swift Sensor network does not allow any outside communication. As a result, the Swift Sensor network is incredibly secure.

Swift Sensors only communicate with Swift Sensors gateways. Swift Sensors gateways only communicate with the Swift Sensors Console. The Swift Sensor network does not allow any outside communication. As a result, the Swift Sensor network is incredibly secure. The Swift Sensor Console, however, features a robust API which can be utilized to communicate with 3rd-party applications.
