Wireless 0-200AAC Current Meter

SS3-617-200

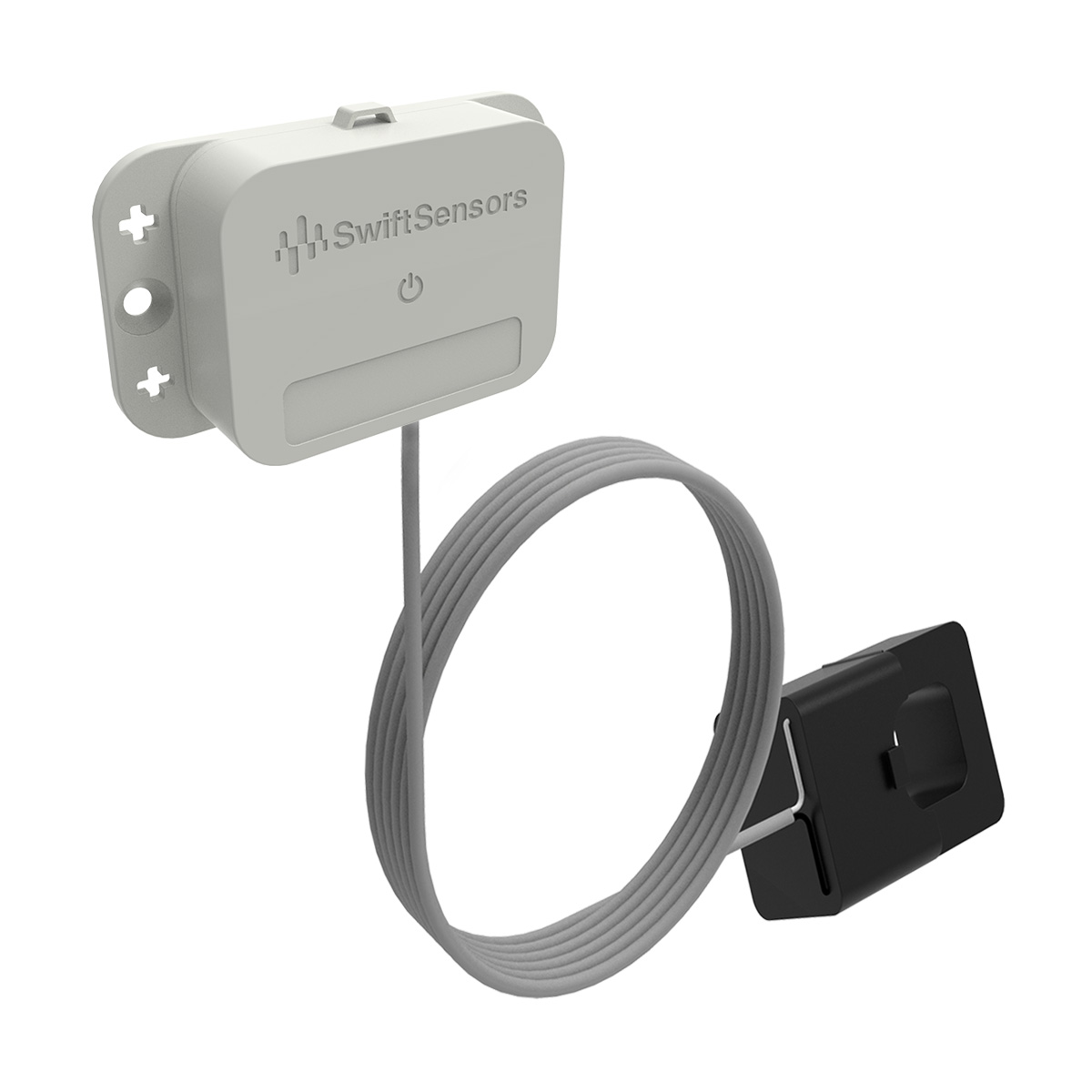

Swift Sensors Wireless 0-200AAC Current Meter measures the current consumption of high-power equipment and machinery, such as industrial generators, power distribution systems, entire kitchen appliance operations, server farms, industrial equipment, charging stations, and manufacturing systems. Clamp the split-core current transformer around a single live or neutral wire of the AC power system and close the latch for single-phase AC measurements. The IP66-rated sensor enclosure is water-resistant and dust proof. View real-time analytics, download compliance reports, and receive instant mobile alerts on any device.

A Swift Sensors system requires the purchase of at least one gateway, at least one sensor, and a monitoring plan.  Learn more.

Specifications

Weight0.125 lbs
Dimensions3.05 × 1.73 × 0.73 in
PowerAAA x2 Replaceable Lithium Polymer
Operating Voltage1.8VDC – 3.6VDC
Average Current Consumption<3uA(Sleep), 16uA (Active), 500uA (Command ACK)
Operation Temperature-40°C to +60°C (-40°F to +140°F)
Operating EnvironmentIndoor/Outdoor, 0-95%+ RH (Brief Periods of Condensation Tolerated)
Battery Operating Temp-40°C to +60°C (-40°F to +140°F)
Battery Life (Average)6 – 8 Years
Communication ProtocolBLE/BT5 2.4Ghz
BLE ChipsetnRF52840
Range70m – 90m (250ft – 300ft) Line-of-Sight, 30m – 45m (100ft – 150ft) Non Line-of-Sight
Encryption128-Bit AES Encryption
Button PressClick to turn on. Press and Hold 2 sec to put in sleep mode
LEDGreen LED: 2 sec blinking when turning on. 2 sec solid when entering sleep mode
Find My SensorCommand from Console to blink sensor LED
Weight56g (2 oz)

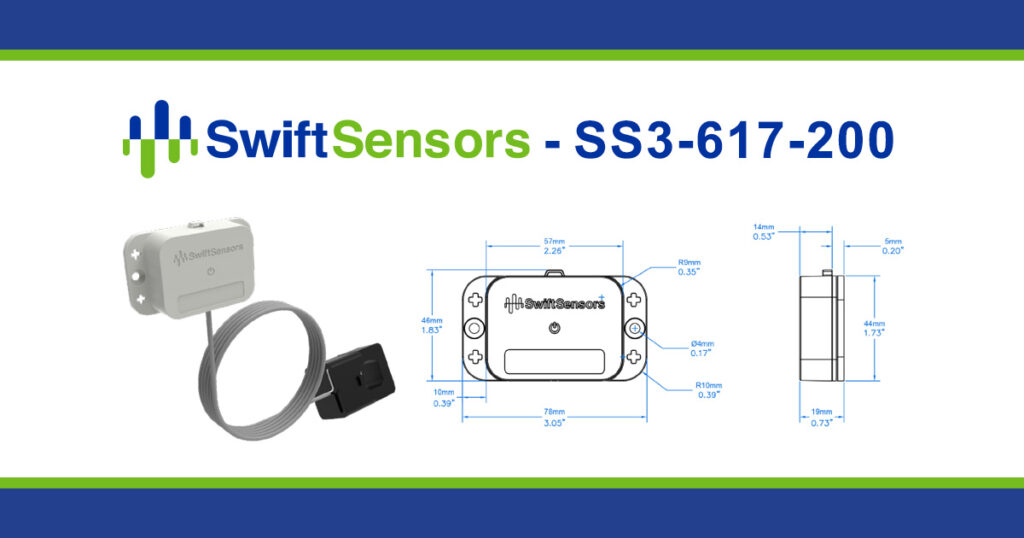

Dimensions57.5mm W X 44mm L X 18.57mm D (2.26in X 1.73in X 0.73in), 77.5mm(3.05in,Flanges)
Enclosure MaterialABS, PA-765+
IP RatingIP66 – dust-proof and water-resistant to high-pressure jets/sprays, Lead Wire + Detection Wires Fully-Submersible in Water
Probe Dimensions22 – 24awg Alphawire EcoMini Insulated, 2m Length, Split-Core Current Transformer attached to EcoMini Cable
CertificationsCE Compliance: IEC 61010-1, FCC – X8WBT840F, IC – 4100A-BT840F
EMC ComplianceFCC Part 15 Class B
Warranty2-year
MeasurementAC Current (Sinlge-Phase)
Measurement Range0-200Arms Pre-Calibratred
Accuracy+/- 0.2Arms <10Arms*, +/- 1% 30-200Arms, +/-0.3Arms 10-30Arms*
Precision0.001AAC
Inspection Rate1 – 30 Minutes (Default 5 Minutes)
Measurement ConfigurationClamped on Lead, CT Hanging, Following K->L Bottom view diagram, Smaller Leads may see up to a 1% measurement deviation if CT is not in a Hanging configuration

Request Quote

Request a Quote

Features & Benefits

View real-time analytics, download compliance reports, and receive instant mobile alerts on any device.

System Components

A Swift Sensors system requires at least one gateway, at least one sensor, and a monitoring plan.

FAQ

A Swift Sensors system requires the purchase of at least one gateway, at least one sensor, and a monitoring plan.

  • We offer over 30 types of wireless sensors. Each sensor is smaller than a credit card and has battery life of 6-8 years. The sensor transmits data via Bluetooth 5 (BLE5) and connects to the gateway with a push of a button.
  • The gateway receives data from each sensor and then transmits the data to the cloud console via local ethernet, WiFi, or cellular network (optional module). Each gateway supports up to 150 sensors within a 500 foot radius.
  • The monitoring plan is very simple. The fee is based on the number of sensors you deploy. You can pay monthly, annually, or multi-year. There are no contracts required. View real-time analytics, download compliance reports, and receive instant mobile alerts on any device.

The sensor range is generally 500 ft (150 m) depending on the facility infrastructure and equipment located between the sensor and the gateway. The sensors use the BLE5 wireless communication protocol which allows signal transmission through doors and walls constructed of standard building materials.

Each sensor uses two AAA lithium polymer batteries with an average lifespan of 6-8 years.  Replacement batteries are readily available at hardware stores and various retail locations.

The monitoring plan is very simple. The fee is based on the number of sensors you deploy. You can pay monthly, annually, or multi-year. There are no contracts required.

The Swift Sensors Console is a robust cloud-based monitoring, alerts, and reporting platform viewable remotely on any device. The Console is used for hardware setup and system configuration. The Console presents analytics that provide trend analysis, historical documentation, compliance reporting, and deep insights into equipment performance, facility operations, and environmental conditions. The platform is customizable and adaptable to any industry with unparalleled ability to search, filter, sort and view critical measurement and performance data. Configurable instant alerts enable immediate corrective actions when significant events occur. Alerts can be sent to individuals or groups via SMS text, email, or voice.

The Swift Sensors monitoring, alerts, and reporting platform was developed and is maintained by industry experts with extensive experience in network security. Sensor to gateway communication utilizes BLE5 and 128-bit AES encryption. Gateway to cloud Console communication utilizes ethernet, WiFi, or cellular (optional module) and 256-bit AES encryption. Data is securely transmitted over Secure Sockets Layer (SSL) on port 443. The Swift Sensor network does not allow any outside communication. As a result, the Swift Sensor network is incredibly secure.

Swift Sensors only communicate with Swift Sensors gateways. Swift Sensors gateways only communicate with the Swift Sensors Console. The Swift Sensor network does not allow any outside communication. As a result, the Swift Sensor network is incredibly secure. The Swift Sensor Console, however, features a robust API which can be utilized to communicate with 3rd-party applications.
