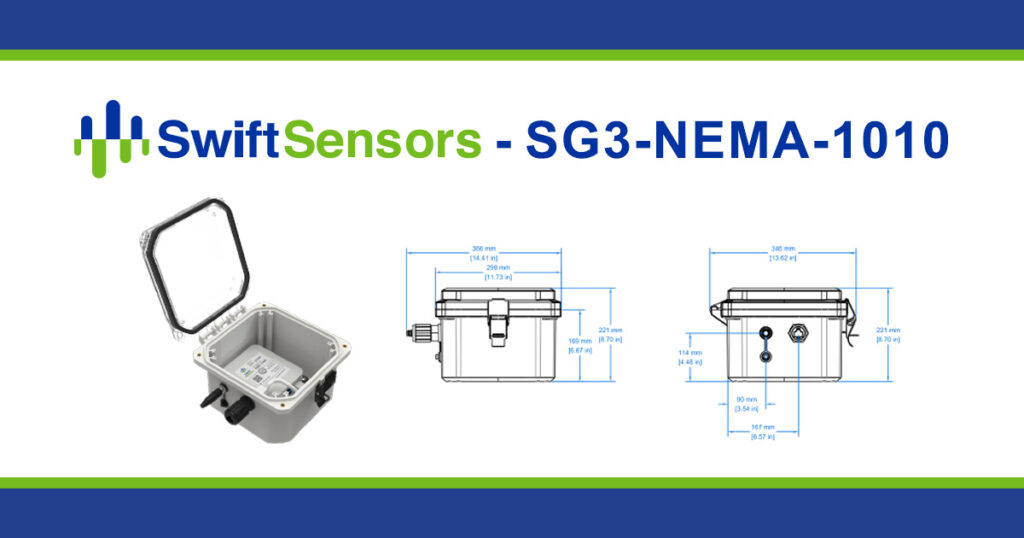

Water-Resistant NEMA Enclosure with Integrated Gateway
SG3-NEMA-1010
The Swift Sensors Water-Resistant NEMA Enclosure with integrated SG3-1010 Gateway allows the gateway to be IP65 (latch only) or IP67 Rated (screw-close configuration). The Swift Sensors Gateway can be powered with 110/220V universal power supply or with active PoE (IEEE 802.3af and 802.3at). The gateway can be mounted on a wall or secured with zip ties. View real-time analytics, download compliance reports, and receive instant mobile alerts on any device.
A Swift Sensors system requires the purchase of at least one gateway, at least one sensor, and a monitoring plan. Learn more.
Specifications
| Weight | 2.2 lbs |
|---|---|
| Dimensions | 7.04 × 7.04 × 5.72 in |
| Power Supply | 110VAC/220VAC to 12VDC, 1.5A 18W universal threaded power supply |
| Operating Voltage | 12 – 24VDC (DC Jack), 24-48VDC (PoE, Active Only) |
| Current Consumption | 220mA @ 12VDC (2.64W) Nominal, 300mA @ 12VDC (Peak) |
| PoE Support | 802.3at/af Active PoE |
| CPU Operating Temperature | -55°C to +85°C (-67°F to +185°F) |
| Operating Environment Temp | -40°C to +50°C (-40°F to +122°F) |
| Relative Humidity | 20% to 90% RH, non-condensing |
| Wi-Fi Connectivity | 2.4 GHz and 5.0 GHz IEEE 802.11ac wireless |
| Ethernet Connectivity | 100/300/1000MBPS (GBE) |
| USB | 2 USB 3.0 ports for supported devices only |
| Encryption | 256-Bit AES Encryption |
| Time-Keeping | RTC with CR1220 Battery |
| Front Panel LEDs Internet | Green – Connected, Yellow – Local Connection, no Internet, Red – Not Connected, White – Power On Sequence |
| Front Panel LEDs Setup WiFi | Blinking — Transferring to AP mode, Solid Blue – AP mode for Wifi Configuration |
| Sensor Types Supported | Up 150 Swift Sensors Series 3 BLE Sensors |
| Weight | 1kg (2.2lbs) |
| Mode of Use | Indoor/Outdoor |
| External Case Dimensions | 178.82mm X 178.82mm X 145.29mm (7.04in X 7.04in X 5.72in) |
| Internal Case Dimensions | 107.95mm X 107.95mm X 116.84mm (4.25in X 4.25in X 4.60in) |
| Enclosure | Impact-Resistant PC (Polycarbonate) with Clear Lid |
| Certifications | FCC – X8WBT840F, 2ABCB-RPI4B, IC – 4100A-BT840F, 20953-RPI4B |
| EMC Compliance | FCC Part 15 Class B |
| Warranty | 1-year NEMA Enclosure, 2-year Gateway |
| UL | UL-508A Listed (File E352997) |
| IP Rating | IP65 (using Latch only), IP67 (when using screw close configuration) |
| NEMA Ratings | 1, 12, 13, 2, 3, 3R, 3RX, 3S, 3SX, 3X, 4, 4X, 5, 6, 6P |
| Flammability Rating | UL746C 5VA, UL94 V-0 |
| UV Protection Rating | UL 746C |
Request Quote
Features & Benefits
System Components
FAQ
A Swift Sensors system requires the purchase of at least one gateway, at least one sensor, and a monitoring plan.
- We offer over 30 types of wireless sensors. Each sensor is smaller than a credit card and has battery life of 6-8 years. The sensor transmits data via Bluetooth 5 (BLE5) and connects to the gateway with a push of a button.
- The gateway receives data from each sensor and then transmits the data to the cloud console via local ethernet, WiFi, or cellular network (optional module). Each gateway supports up to 150 sensors within a 500 foot radius.
- The monitoring plan is very simple. The fee is based on the number of sensors you deploy. You can pay monthly, annually, or multi-year. There are no contracts required. View real-time analytics, download compliance reports, and receive instant mobile alerts on any device.
The sensor range is generally 500 ft (150 m) depending on the facility infrastructure and equipment located between the sensor and the gateway. The sensors use the BLE5 wireless communication protocol which allows signal transmission through doors and walls constructed of standard building materials.
Each sensor uses two AAA lithium polymer batteries with an average lifespan of 6-8 years. Replacement batteries are readily available at hardware stores and various retail locations.
The monitoring plan is very simple. The fee is based on the number of sensors you deploy. You can pay monthly, annually, or multi-year. There are no contracts required.
The Swift Sensors Console is a robust cloud-based monitoring, alerts, and reporting platform viewable remotely on any device. The Console is used for hardware setup and system configuration. The Console presents analytics that provide trend analysis, historical documentation, compliance reporting, and deep insights into equipment performance, facility operations, and environmental conditions. The platform is customizable and adaptable to any industry with unparalleled ability to search, filter, sort and view critical measurement and performance data. Configurable instant alerts enable immediate corrective actions when significant events occur. Alerts can be sent to individuals or groups via SMS text, email, or voice.
The Swift Sensors monitoring, alerts, and reporting platform was developed and is maintained by industry experts with extensive experience in network security. Sensor to gateway communication utilizes BLE5 and 128-bit AES encryption. Gateway to cloud Console communication utilizes ethernet, WiFi, or cellular (optional module) and 256-bit AES encryption. Data is securely transmitted over Secure Sockets Layer (SSL) on port 443. The Swift Sensor network does not allow any outside communication. As a result, the Swift Sensor network is incredibly secure.
Swift Sensors only communicate with Swift Sensors gateways. Swift Sensors gateways only communicate with the Swift Sensors Console. The Swift Sensor network does not allow any outside communication. As a result, the Swift Sensor network is incredibly secure. The Swift Sensor Console, however, features a robust API which can be utilized to communicate with 3rd-party applications.
